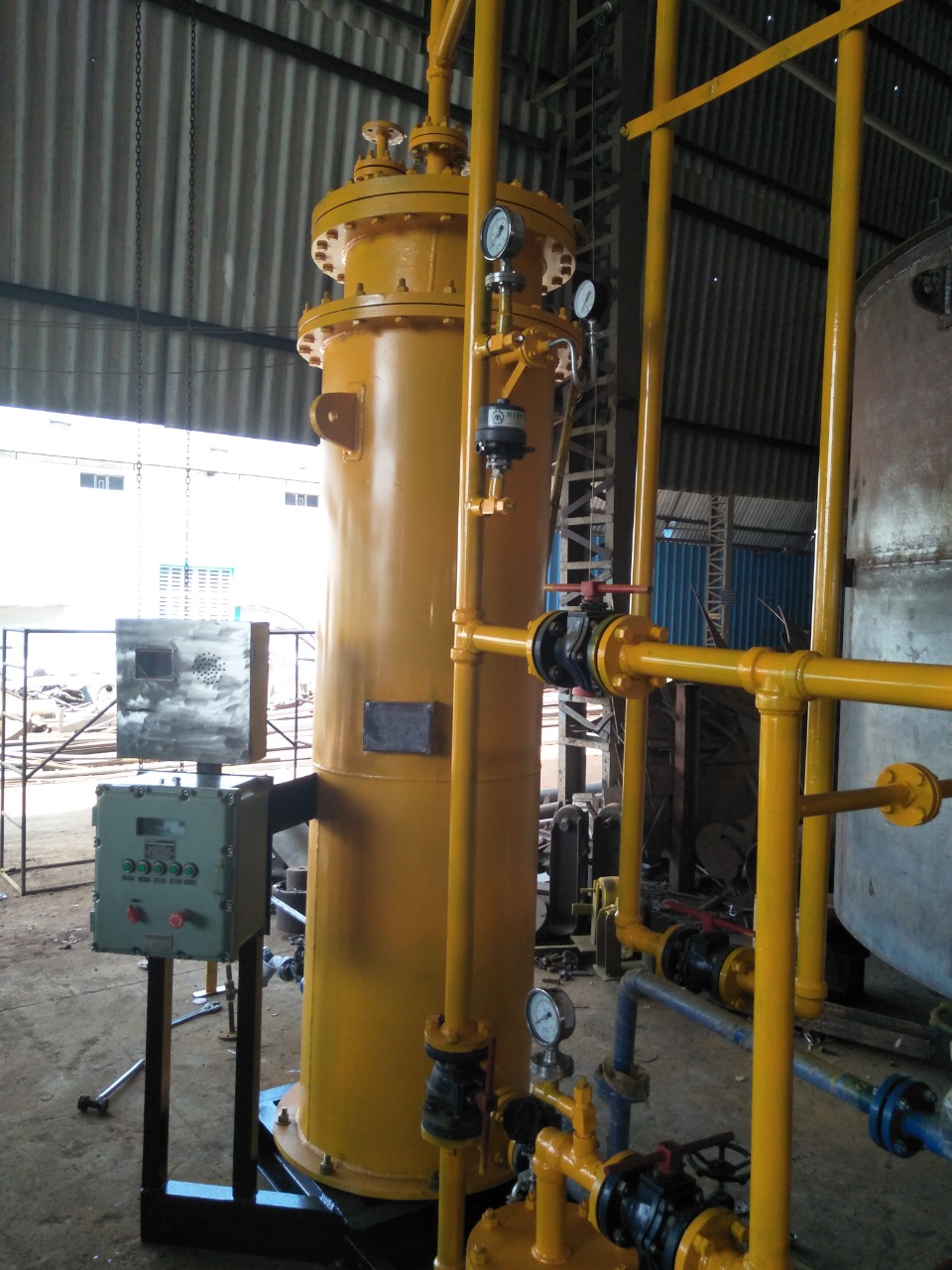

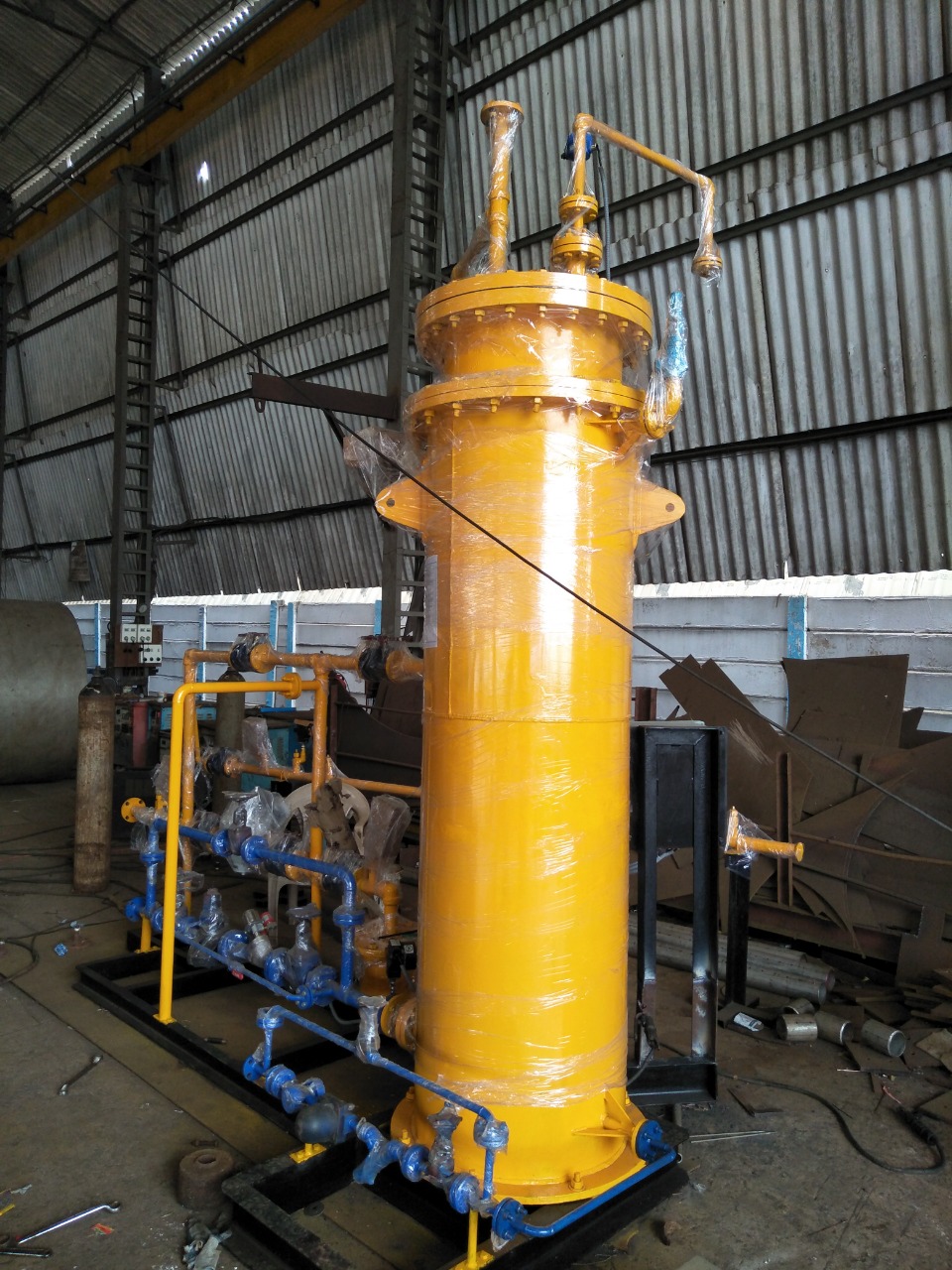

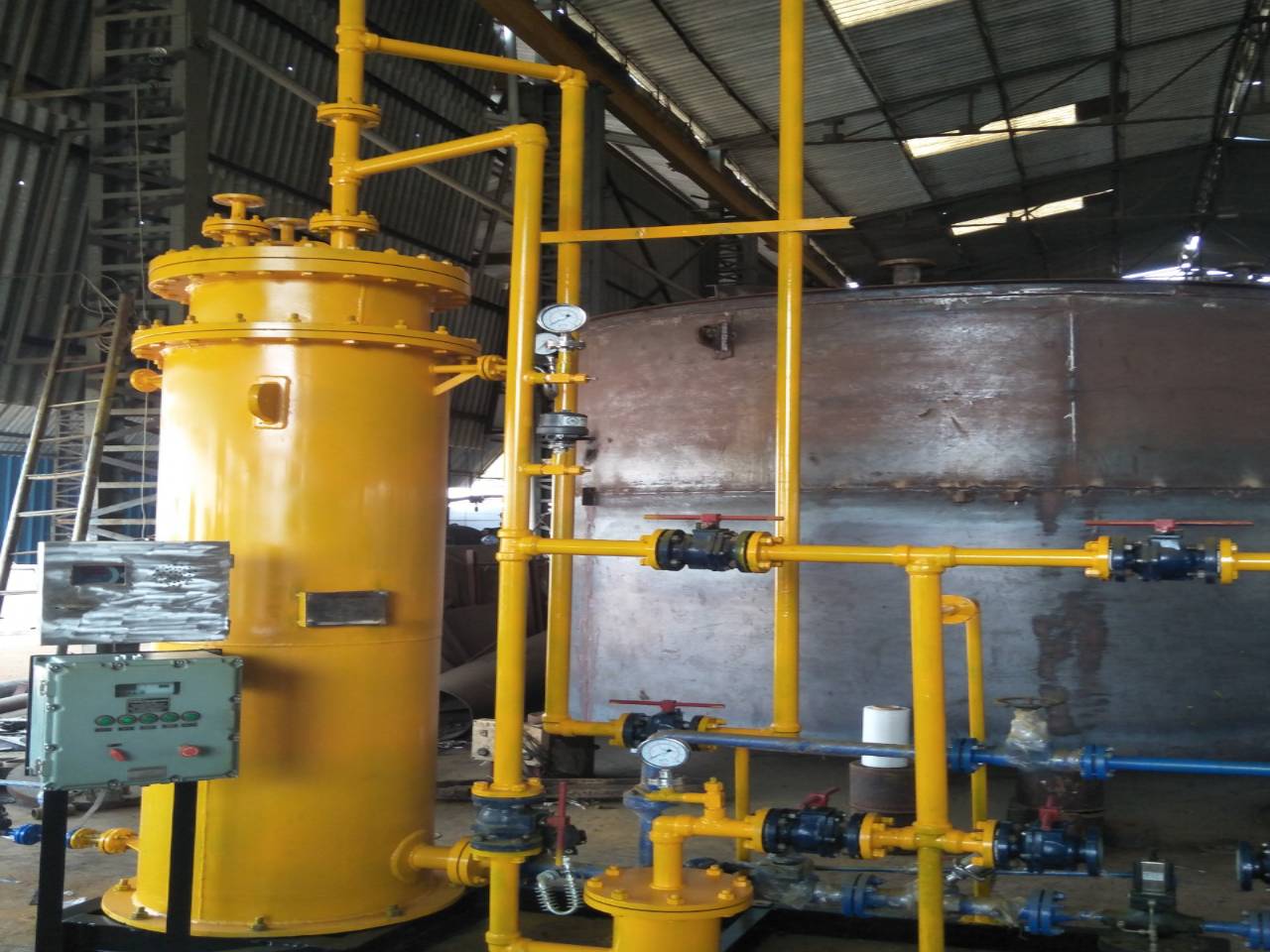

Chlorine Vaporizers

The design & manufacture of Steam Heated Vaporizer meets Chlorine Institute recommendations for liquid vaporization by low pressure steam. The liquid Cl2 is inside the vaporization chamber and the heating media is steam vapour which is outside the vaporization chamber.

The vaporizer design pressure of 300 lbs meets Chlorine Institute Recommendations with corrosion allowance of 3 mm on chlorine side and 1.5 mm on steam side.

The internal and external surface of the vaporizing chamber can be easily inspected during servicing which is a unique feature of the design. Ease of cleaning is an added advantage to remove the sediments.

Vaporizer can be easily cleaned by removing from the top.

The Steam chamber has nozzle connections for steam inlet, condensate outlet, pressure gauge, pressure switch and pressure relief valve. Insulation on shell must be done by the client at site.

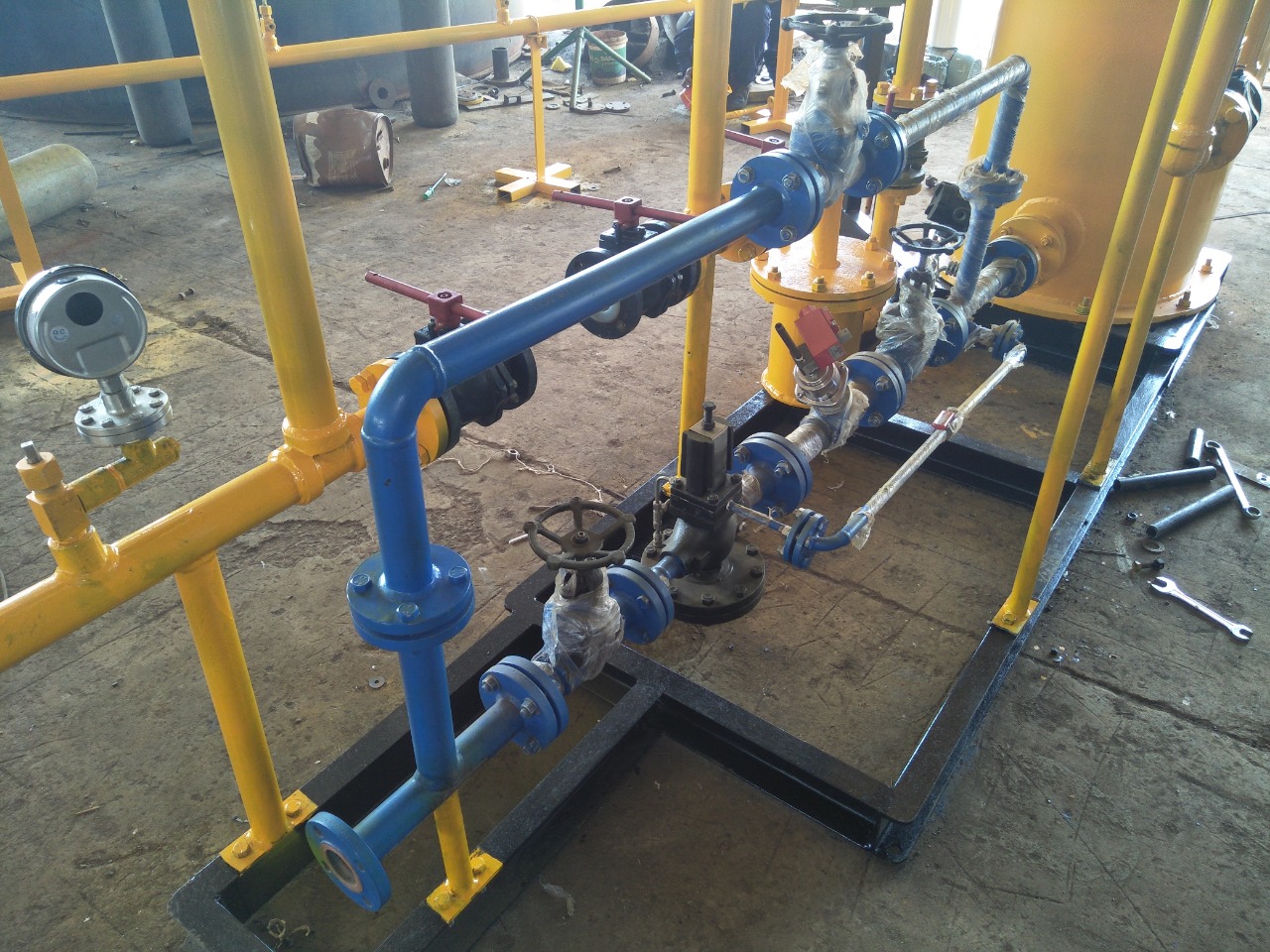

We also provide Pressure relief valve (PRV), pressure gauges integrated with pressure switches and temperature indicators on the chlorine outlet, for enhanced safety. Standard header for liquid chlorine Filter for liquid.
